BUILD A RECYCLED or JUNKYARD Stratocaster

with new, used or cannibalized Stratocaster components.

This page is an abstract of my book on 'How to build a Stratocaster", you can buy the full book here via the webshop.

Alternatively you can get the full books as ePub on Amazon/Kindle or Apple's iBookstore.

At the end of this page i'll go into the use of kits, mostly unsprayed, undrilled and in the worst case with a paddle headstock. On the other hand they are complete, and will fiit reasonably (in most cases) together. The biggest issue is to get the position of the bridge right. If you get one cheap enough good stuff to get some handson.

Lekker winkelen zonder zorgen - Gratis verzending en retour

What you need:

responsive design image

Time

If you don't have to or don't want to do cosmetic restauration work like filling up old screw holes or do complex routing, you can put a Strat together and set it up in four hours or less. Getting all the right parts at the right price may take you a few months though!

Construction instruction

You will want a construction guideline in order to prevent you from making deadly and costly mistakes. Uh, why not buy my book?

Tools

You need a certain set of tools. Wrenches, soldering iron, measuring tools for setup, files and so on. Most books give an overview of tools you need.

Workplace

You will need a place to work where you can leave your guitar "under construction" undisturbed by wife, kids and your friendly house cleaner (prevent her from vacuuming your workplace and getting rid of your precious tiny screws!).

The Stratocaster shoppinglist

A typical package for a fairly standard Strat must have the components in the picture and more precisely in the table below. You can combine parts from genuine Fenders such as Squier, Mexican, USA without major problems. So a good Squier body with a nice USA made neck will make a very good instrument. Only pickguards and tuners normally require some holes to be drilled and filled.

Your shoppinglist would look something like this:

Neck and body

Pickguard with normally 11 screws

Pickups with mounting material

Tuners with 6, 12 or zero screws depending on brand

Tremolo set with 6 screws, plus two for springclaw

Neckplate with 4 screws

Jackplate with jack receptacle with 2 screws

Strapholders with 2 screws

Stringtree (one or two) with 1 screw each

Backplate with 6 screws

Shielding tape with 1 optional screw

What you must know about the components

Especially if you try to put together your own set, there are some pitfalls coming with each component. But that makes life interesting doesn't it?

responsive design image

Necks

Necks come in a number of varieties. The main things to  watch are: the serial number and logo plus shape of headstock signifying origin and age (this will affect the price!). Beware of fake Fender decaLs.

Fretboard can be maple or rosewood. Rosewood is said to cause a more 'bluesy' tone, and maple a 'sharper'.

Wood, normally maple with a skunk stripe present yes or no (walnut inlay at the back enabling access to trussrod during building) 21 or 22 frets. See photo for a 22 fret example, clearly recognizable. Fits standard Strat body no prob. neck shape - if you are critical, C-shape, V-shape etc. neck radius (i.e. the fretboard's curve), advanced.

Scale

The standard scale length is 648mm, which is the stringlength between the nut and saddle points of contact.

For E1 this is the startpoint and thus fret 12 should be very close to the middle of this. Scale lengths for the thicker strings are a tiny bit longer - roughly increment for each string is its diameter. This a good initial way of setting rough intonation. To fine adjust needs a bit more attention and possibly a good electronic tuner - will be dealt with below.

Body

Things to watch out for are:

Age, paint original or refinished (should not be done to an old body, criminal)

Routes HSS, SSS, Bathtub (see the black one below) or modified. Bathtub is ugly, but the advantage is that it will accommodate any pup configuration.

responsive design image

Bridge type and width (there are two widths, see tremolo)

Wood type (mostly alder) - requires some specialist knowledge

The body in the picture above is a bathtub, not my preference. Also its drilled for a two point bridge like Floyd Rose or Kahler. Better start with the standard 6 screw vintage type..

Regretfully bodies are not always clearly marked Fender, you have to trust the seller or decline - or get down the price.

Pickguards

When buying pickguards watch the correct Trem (vintage or two point Kahler) fit and PU configuration; SSS, HSS etc as well as the right number of screw holes. Most common are 8 (vintage) and 11 hole (regular).

If you buy a pickguard off the market separately from the body it is absolutely guaranteed that one or more screw holes will NOT match those in the body. Not too much of a problem if you are prepared to drill a few holes AND fill the unused holes (cocktail stickers and sate sticks make great prefab dowls). Another attribute of PGs is the number of layers, study those on Ebay. You see single layer, BWB, WBW etc.

Pickups

Also referred to as 'pups' , not young doggies.

Now the coils. The specific Fender sound has to do with the single coil pickups. As single coil can be noisy, the humbucker PU's were designed. Effectively these have two coils switched out of phase, which apart from a totally different sound also eliminates hum.

Another variety in the single coil arena are PU's with humcancelling, effectively humbuckers but the second coil doesn't contribute to the output.

In the book I will only deal with basic single coils in a SSS configuration - three of those.

Here are a few important brands with their single coil product which provide very good alternatives to the original Fender PU's.

  • Van Zandt - Vintage Plus

  • Seymour Duncan - California 50's

  • Fralin - Vintage Hot

  • DiMarzio - Virtual Vintage

  • Nordstrand NVS - standard Rio Grande - MidBottom

  • Rio Grande - MidBottom

  • Kinman - Traditional>

  • Suhr - V60

If you're in an experimental mood and have the cash, you can experiment mixes of these.

There are several types of magnets, a mystery for many is the discussion around alnico (aluminum, nickel, cobalt) and ceramic magnets - and several more! Alnico is believed in general to have  the better sound and these pups are in general more expensive.

About electronics and wiring

responsive design image

I tend to add one ground (mass) wire from the volume pot housing to the shielding of the PU cavity, this is not in the drawing but is easily added, similar to the one called  'ground to bridge', you could call it 'ground to shield'

If you don't have a loaded pickguard, mount all the components on your pickguard, turn it upside down and get your soldering iron out. Cut all wires to the desired length, strip all wires and apply solder to the stripped part. Apply a thin layer of solder to all other contact points like lugs of the pots.  This pre-soldering ensures a quick connection.

Warning: if you're tempted to measure the resistance of your PU coils, be careful. Your multimeter should apply a very very low voltage when measuring. Too high without current limiter may burn your PU coils.

This set of pots and a capacitor is referred to as 'the guitar electronics' . Actually these circuits are extremely basic and in fact passive (there are no active elements such as transistors or integrated circuits), so electronics is a bit of an overstatement.

Things get more electronic when preamps and the like are added. Currently thats outside the scope of this edition, but I'm in the process of writing a fourth book on electronics and mods (also some content of that book will on this site).

The drawing gives a basic schematic but it is by no means the only way to wire up the PU's.

The Strat 5-way switch

Most people only have a vague idea how that PU switch on the Strat works, let alone how it must be connected if you must replace or modify something.

My book explains more about it, but here are some crucial details as well as a series of pictures that show how the switch operates.

Basically on the Strat we have a double rotary switch with three contacts in and one out. - The two switches are on one axle and thus operate in perfect unison. The modern switches dont look this way, but behave the same.

- The runner is broad enough to touch two contacts when placed in the middle (this was how the early players tricked the two additional positions with a 3-way switch.)

- So we have 3-way switches with 2 additional stops in between, yielding 5 possibilities

The PU;s are connected to one switch, the tone pots to the other and the two outputs are bridged and go to the volume pot.

On http://www.youtube.com/lambertusjan i have publsihed all 5 pictures as a video clip, which shows the working quite nicely.

Here I show the first 3 positions, which should suffice to clarify the operation.

The red lines are active connections in that position. Have a look:

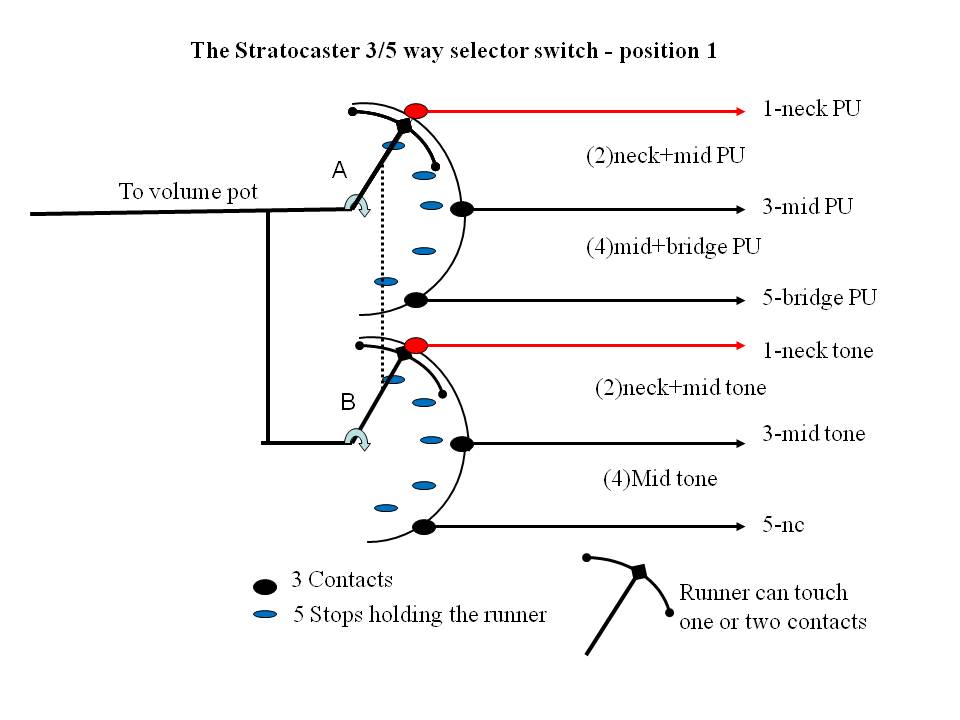

position 1

responsive design image

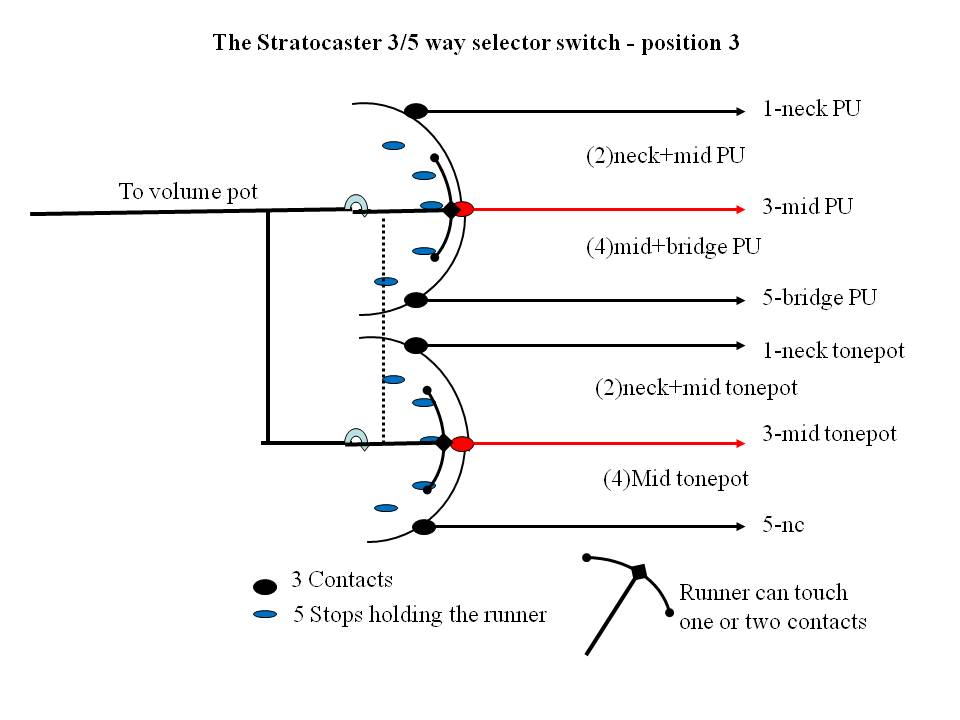

position 3

responsive design image

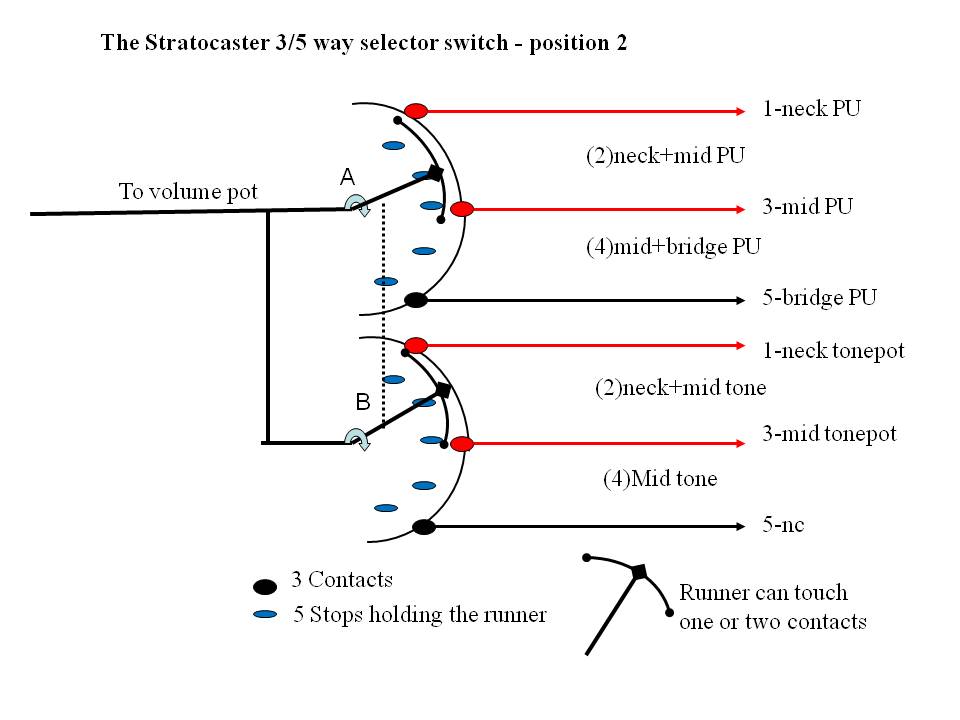

position 2

responsive design image

Note that there are more switches:

MEGASWITCH, basically a real 5 way switch (no aritificial stops_)

SUPERSWITCH: this is a nice beastie if you like soldering. Its a 4 layer , 5way switch. So you can imagine there's a confusing amount of configuration possiblilities.

S1 SWITCH: is a pushpull pot with built onto it two dpdt switches.. You see this one used in combination with the superswitch. I will follow these switches up on the electronics pages.

Tuners, machines, whatever.

responsive design image

See photograph above with a very vintage (1963 Musicmaster) example of slotted tuners with non-threaded bushings. By the way, the Musicmaster is a wonderful guitar with a great sound from its single PU, and vintage still affordable - not for long though.

See the Precision Bass page how to set up strings in slotted tuners. The PBass pegs are larger, but the principle is the same

Tuners, machines, machine heads, pegs and more aliases are used. They come in a number of variations. With bushings that have to fit in the headstock, with threaded bushings that are screwed on the machine. Then there are vintage slotted tuners and new models with a hole thru the peg.

Tremolo and bridge

responsive design image

There are 2 point pivot models like Floyd Rose and the hardtail (only bridge, no tremolo).

FR is somewhat more complex, the hardtail somewhat less.

The tremolo parts are - bridge with saddles, block and baseplate with 6 screws - the whammy bar - spring claw with 2 screws - and 5 springs. The springs act as a counterbalance for the strings and determine the tilt of the tremolo bridge.

The neckplate

Holds the neck - body connection. Most common is the variant with 4 screws.

In the seventies Fender experimented some time with a 3-screw connection and a triamgular neckplate, which is not very popular. Recently (Anniversery models) there are neckplates with 4 screws but asymmetric. The Precision Lyte models have a similar genetic quirk.

The 4-screw type fit Stratocaster, Telecaster and Precision Bass.

Vintage neckplates may hold a serial number - and will cost loads if real. Many fakes around. Serial numbers moved to the headstock lateron.

There is also a black plastic neckplate that fits under the metal one. Thats purely cosmetic, no function.

Holds the neck - body connection. Most common is the variant with 4 screws. In the seventies Fender experimented some time with a 3-screw connection and a triamgular neckplate, which is not ver popular.

Recently (Anniversery models) there are neckplates with 4 screws but  asymmetric. The Precision Lyte models have a similar genetic quirk. The 4-screw type fit Stratocaster, Telecaster and Precision Bass.

Vintage neckplates may hold a serial number - and will cost if real. Many fakes around. Serial numbers moved to the headstock lateron.

The rest

Stringguides or tree. Required for the E1 and B2 strings to force the correct angle of the string over the nut. Sometimes also for G3 and D4.

Strapholders

My book deals with the tremolo bridge 6-screw vintage model only, it is what makes the Strat, uh Strattish.

Be on your guard, there are two sizes (distance between saddles) so check before you buy..

Putting the parts together

Following is a simplified step-by-step guideline how to put it all together, resulting in a guitar.

Mounting the neck

Turn the screws into the bresponsive design imageody so that they just emerge above the face of the neck cavity.

Match the 4 screws carefully against the corresponding holes in the neck

Tighten the screws going diagonally as well as round the clock, take care all screws are tightened and with the same force.

This is not necessarily the first step. You can opt to mount the neck at a later stage.

I myself have this funny urge to have a guitar in my hands as quickly as possible, and for me thats neck plus body.

Apply shielding

responsive design image

Get your alu adhesive tape and apply shielding to the inside of the cavities. Make certain that the strips slightly overlap and also overlap a tiny bit to the face of the body. You can choose to not use shielding at this stage, but only do this when necesssary, i.e. when the guitar is very noisy. I do recommend it.

There they will contact the shielding on the inside of the PG and create a nice closed Faraday cage.

Optionally you can add a screw (spare PG screw) and a small soldering ring to the bottom of the cavity which will be an extra mass connection to one of the PU pots.

Mount the pups on the pickguard

responsive design image

If you have a loaded' pickguard complete with pickups, pots, switch and fully wired you can skip this step.

If not now mount the pickups with springs or rubbers (sic!) and get your soldering iron out. The spring/bolt combination will allow you to adjust the distance to the strings.

Prepare the lot upto the leads that go to the jack.

Ref an example or the wiring drawing above.

Dont touch the metal part of the soldering iron with your fingers, it hurts and as a customer said "human flesh stinks when burned".

Mount the loaded pickguard on the body

Check if the holes in pickguard and body match.

I wouldn't put an 8 hole PG on an 11 hole body or vice versa. So get another PG if needed.

Now check the holes in the PG against the position of the corresponding holes in the body. With almost 100% certainty one or more holes will not match. Get your trusted sate sticks out, look for the best position of the PG with a corresponding hole and fix that in place with a sate stick. Repeat with as many holes as possible.

Now mark the remaining positions on the body and drill with a 2mm drillbit.

Lead the necessary wires to jack cavity and tremspring cavity and solder the optional wire to shielding.

Fix the PG in place with 4 or 5 screws - rest will follow at the end. Don't fix all screws when you still have to step back and unscrew for some reason.

Wire up jack and mount jackplate. You will have two wires coming from the PU s, one black and one white.

The black goes to the outside of the jack connector, the white goes to the core. If in doubt check with your multimeter. Alternatively you may have a shielded cable here. The mesh here is mass, and the core carries the signal (also called hot).

Tremolo bridge basics

responsive design image

I've used a method described by Dan Erlewine. You need to make a wedge shaped wooden block, 6 cmwide, 5 cm high and tapering from about 1.8 cm to .6 cm. You may want to have a few blocks with slightly different dimensions. As soon as you have a string mounted you can set up the trem in your favourite position using the block as in the photograph, no springs yet.

You can fix the trem with the backplate flush with the body - allowing only dives - or with more space, allowing whammy up as well as down.

You have the springclaw already at 2.5 cm. String up completely, not yet to pitch Now add three springs as in picture (5 springs if you are into heavy gauge strings) Tune to pitch

Now haul in the springclaw using the two screws which increases the spring tension, see pic

The block will come loose when springs and strings are balanced, with the trem in your chosen position.

Readjust springclaw when you change to different string gauge, or when you want to change the home position of the bridge!

Done sofar

Check if you screwed all screws but at this stage definitely plug the guitar in an amp and see if it produces a guitarish sound. If you only hear a terrible noise the most likely cause is that signal and mass are reversed, so check your soldering to the jack.

If you hear nothing at all there is probably a short between two wires or a soldering joint got loose.

If thats satisfactory you get to the most important point : setup.

The setup

Now we have built a guitar there is a fair chance that it is not very playable. The set up is by far the most important step in the process; you can take a very simple, cheapo guitar and with a good setup make it a great instrument. A 10000 dollar 1956 Strat with a lousy setup will only yield a lousy guitar

Neck relief

Place a Capo on position one, just before the fret. Now depress each string at fret 17 and measure open space between top of fret 8 and underside of string. This should be very small in the order of 0,25 mm. or less (my prefence is 0.1). If the neck is too hollow you have to adjust the trusrod. Detune your strings to take away tension. Very carefully tighten the trussrod - a quarter turn at the time to the right (clockwise) will straighten the neck. Retune to pitch. Preferably leave it for day and check again. If the neck is too concave release the trussrod (turn anticlockwise), the strings will pull the neck into position. Some guitars have a trusrrod that can work bothways. Standard is however a trussrod that only pulls the neck straight.

Action

Action is very much determined by your own preference - more than the other measurements.

It is measured with the capo still at fret 1 and you look at the string height between fret 17 and underside of string. A good start is 1.5 mm for E6 and slightly less for E1.

Thicker strings need more space. Take it from there.

Adjust by raising or lowering the saddles using the small Allen (typically 1 or 1.5mm) hex screws.

Here you may hit a serious problem if the neck tilt w.r.t. the body is wrong - see below.

Neck tilt or shim

If you find that you cannot reduce action because your saddles are at their lowest posible point its time for a SHIM.

Shimming means that you take a small piece of plastic (or whatever material) about 0.25 or 0.45 mm thick and about 5cm by 1 cm, and place it in the neck pocket before the screws on the closed side (away from the headstock). This will change the action, normally enough to be allow adjusting the saddles again. In general one 0.45mm shim will do the job.

If you find that the saddles are in their highest position with strings to low or even touching the neck, place a shim at the other side of the neckpocket.

Obviously you will have to unscrew the neck for this operation.

Pickup to string distance

With the bolts either side of the pickup adjust the distance between polepiece and string to around 2.3 mm whilst depressing the string at the last fret.

For the higher strings take a bit less more like 2.1 mm. Experiment, but as you take a smaller measure check sound and sustain as the magnets can mute strings if too close. Too far will of course yield a lower output signal..

Nut adjustments

Depress each string right over the third fret. There should be a bit of distance - light shines thru - between fret 1 and the underside of each string. If the string is touching fret 1, your nut slots may be too low and you may need to shim the nut or get a new one. If its much more you will notice playing in the open and first  positions is painful on the old fingertips. You can mightely improve this by filing the nutslots down - carefully!

The slots for the wound strings should be rounded, not deeper than half the string, the slots for higher strings can be square but not too deep!

Tremolo bridge adjustment

You may after want to change to position (tilt) of the tremolo bridge. This is done with the two screws holding the sprinclaw in the back cavity.

Intonation

responsive design image

The mystery of intonation

The problem: if your intonation is not good, you will find that you can tune the guitar reasonably well for example for open chords but then playing in higher positions will sound awful. Familiar?

The illustration above shows in schematic form what its all about. The drawing represents the E1 string, which basically represents the Strat scale of 648mm, and thats what you initially set for starters. The principle for other guitars is the same, but the scale will be different for a bass, or a Les Paul.

Even if you accurately adjust your high E string to 648mm than still the properties of the string can cause that the wave form of the string doesnt match the fret positions, with best reference to fret 12 ( octave). This is caused by the material of the string, the age of the string, the gauge (.009 will be different from .013!), accumulated dirt etc.

As in the pic above it can therefore occur that when depressed on fret 12 the note is slightly higher than the open string or the flageolet harmonic. You can see that in this case when the note is sharp, this is caused by the string being a bit too short between fret 12 and the bridge. You have to make that part a bit longer, by moving the saddle to the back. You then move the acoustic midpoint of the string to its right position above the 12th fret.

Intonation is by far the most important step in the setup, you have to do this. Worse, you have to do this each time you change any of the above settings!

This is best done with a good electronic tuner, possibly a stroboscopic one if you have USD 300 or so to spare.

Start by ensuring E1 scale is 648mm, and from there the other strings a tiny bit more (about the width of string itself). This will be almost right, but not good enough.

Now for each string starting with E1 do the following:

Check the harmonic (flageolet) at fret 12 with the note when depressing the string at fret 12.

They must be the same.

If not adjust by moving the saddles for- or backward.

If the depressed note is sharp, increase the stringlength (see the schematic above!).

Using an undrilled strat kit

Workshop participants frequently ask if they can bring a complete kit, so they can go home with a ready made guitar of their own.

So I decided to try out a kit - the cheapest i could find, before risking my workshops.

I bought one of these complete kits. Nothing had been drilled, and also the nut still had to be routed into he neck. For a 4 hour workshop not a realistic goal, leaving aside quality of the components. Another issue is that they come without any documentation. Compared to building a guitar with drilled components you easily need 3 to 4 hours extra. This improves of course with the amount of off-factory predrilling as with the more expensive kits. Moreover, the proud owner has to take his instrument apart again in order to spray or otherwise finish it - most kits come unfinished.

We'll see here how to go about placing the bridge correctly, preparing the neck/body joint and aligning and fitting the neck. And all that witthout any specialised equipment or templates. If you have to get 400 euros of special tools for a one time project, you might as well go to the shop and buy a brand new MIM Strat!!

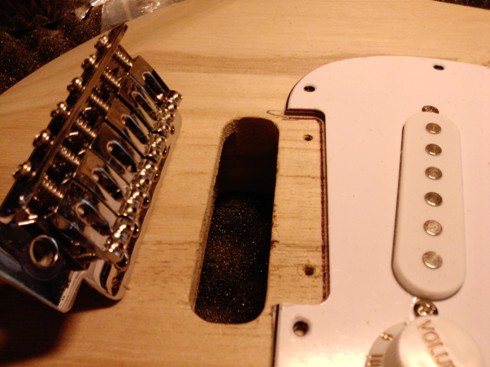

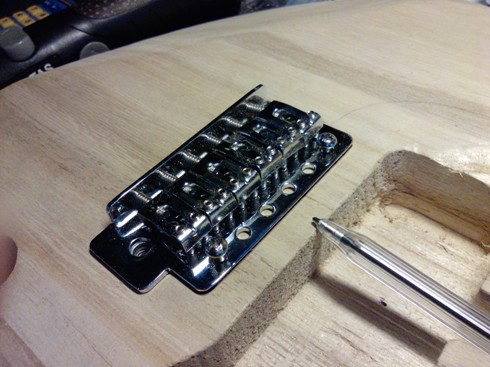

Finding the bridge position

We need the bridge in place first in order to line up the neck. Lining up we do with the two outer strings (see later). There are two important dimensions here, the vertical and the horizontal position - as follows:

For now you have to find the middle line of the body and place te bridge such that the space between the two middle saddles lines up with that line. If you place the body upside down, look in the spring cavity. There you can also easily draw a center line,in this case it must line up with the small hole in the inertia block for the middle spring.

responsive design imageresponsive design image

Another useful measurement is that the body at the widest point is 322 mm (standard). So if your middle line sits roughly at 160 or 161 mm, you are not far off.

The scale of a Strat is 648mm, so the other dimension of your bridge should allow for a nut - saddle distance of around that. You need enough headroom there to adjust intonation. Check against your pickguard. Based on all this mark the position of the two outer screws, and fix it in place. So far so good. Now the body - neck joint.

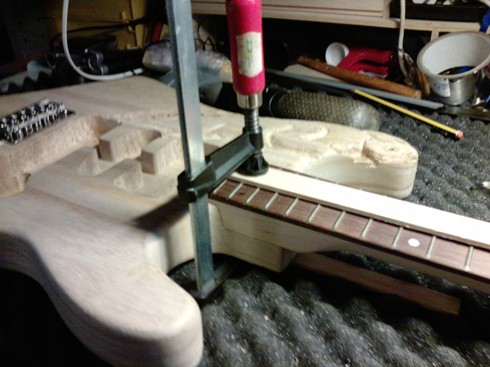

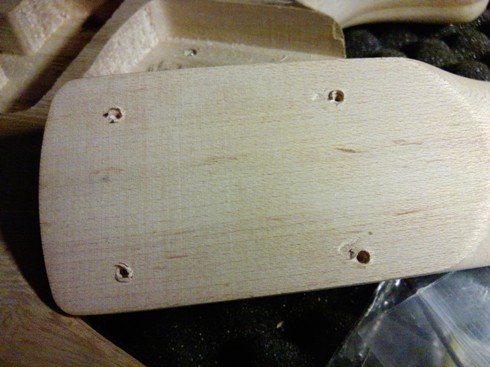

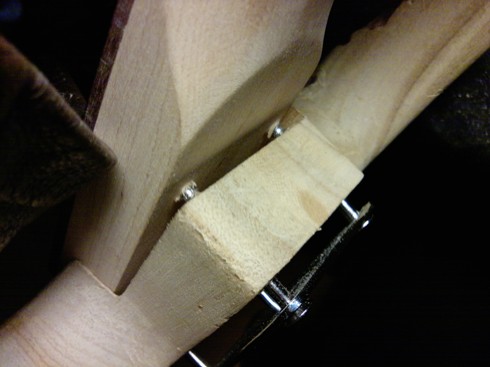

The body / neck joint

responsive design image

Get a neckplate and fit into the neck pocket.

The line between the two innerscrews should be about 16mm from the cavity wall. The neckplate must be perpendicular to the body axis. and a few mm from the open side. Mark the holes and drill exactly vertically (definitely use a stand!!) thru with a 4.5mm bit.

First mount the two outer tuners on the neck, you need two strings to line up in the following step.

responsive design image

Now turn around the body and mount the neckplate with four screws, the tips just remaining under the surface - thats important.

Get a clamp and two pieces of wood. Fix the neck in place and hold it firmly in place with the clamp, the two small pieces of wood protect body and fretboard. Now mount the two E-strings and give some tension.

responsive design image

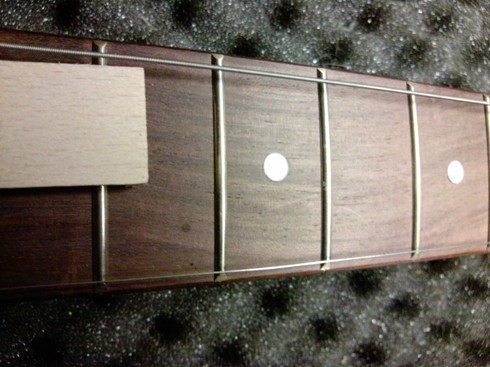

Check if the two strings line up nicely with the sides of the neck. Wriggle the neck in place until they line up nicely (if it is far off you have a problem).

Now , with the neck in the correct position turn in the four screws such that they just 'bite' into the neck. Take them out and get the neck off again where you see that there are four nice markers where the holes for the screws should be drilled.

responsive design image

Next drill the neck using a 3.5mm drill and dont go deeper than 15mm - protect de drill with tape (to prevent drilling to deep).

The rest is small stuff.

Important still is to drill the connections between pickup cavity and jackcavity, as well as the channel between pu cavity and the spring cavity at the back , which is where the ground lead to the springclaw should go. You need a very long (15 cm) 4.5 or 5 mm drill.

responsive design image

Now take the body and neck in a vertical position (my preference) so you can clearly see if the screw tips neatly fit into the drilled holes.

Then tighten the screws, diagonally and work round the clock. Take care they are fastened with about the same force but dont overdo it.

Done.

BACK TO TOP OF PAGE

GUITARS RECYCLED - CONTACT

Use this form to send me a question or order the Stratocaster book:

Contact form

You are visitor:
